Integrated Water System

Patented All in One Control Box (24”x 24” x 6”)

The control box is what operates the system and connects the tank system to the main water line in your home. It includes two ball valves, a water pump, a power converter, a battery and a trickle charger.

1. Ball Valves – Make it simple to turn the water on or off to the pump and the tank storage system.

2. Water Pump (55 psi) – Pumps water from storage tanks into the control box piping assembly and then pushes water through all plumbing lines in the home. The pressure is similar to the standard water pressure in most homes. The system is designed to run 1 fixture at a time to aid in rationing water during an emergency.

3. Power Converter – Converts your in home AC Power to 12 Volt DC power to run the pump.

4. Battery (Backup Power) – runs the system pump from battery power if the in-home power is unavailable.

5.  Trickle Charger – ensures that the backup battery maintains a full charge so it’s ready when you need it!

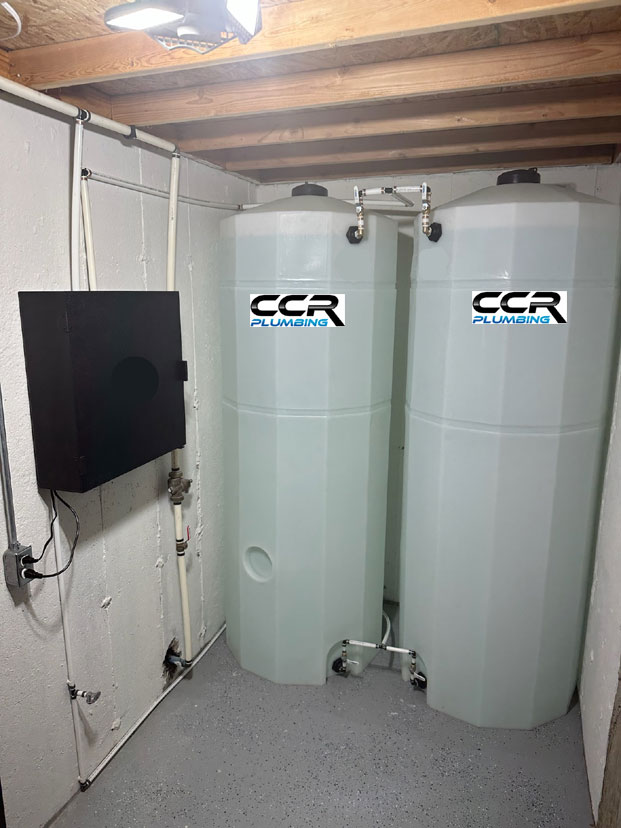

Water Storage System by CCR Plumbing

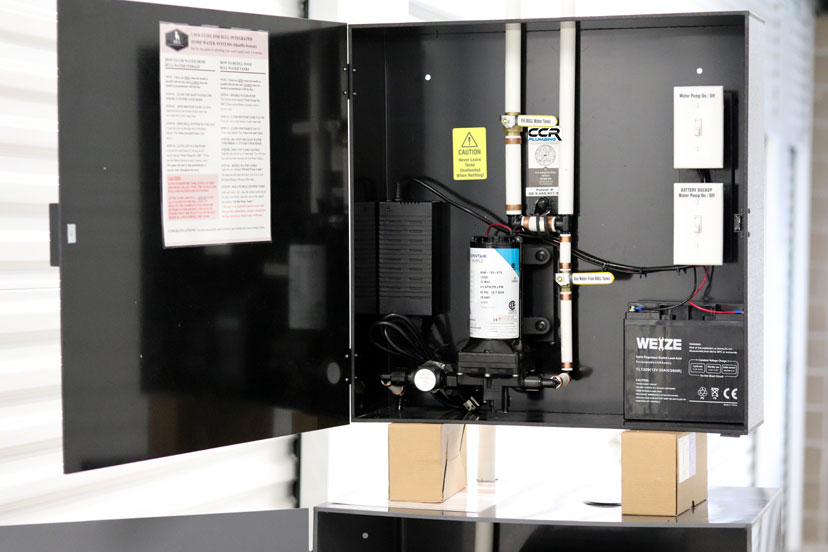

Water Storage System Controls and Pump

All systems include the Patented All in One Control Box.

Each storage tank is 250 Gallons.

Systems are available with 1 tank = 250 gallons, 2 tanks = 500 gallons or 3 tanks = 750 gallons.

All storage tanks are plumbed to the main water line in your home and work the same way whether you have 1, 2 or 3 storage tanks. The only difference is that you will have more water available in case of an emergency.

How do I keep the stored water fresh?

Great Question! Thank you for asking.

It’s simple.

Turn the ball valves inside the Patented All in One Control Box and use the water in the tanks periodically.

When you turn the handles back, the tank(s) will fill automatically with fresh, clean water.

Do this as often as you wish! No wasted water, you know the system is working and you will be familiar with how to use it should you ever NEED it.

Schedule Your FREE Consultation Now!

2 + 4 =

The Fine Print

FDA Approved Water Storage Tanks

  1. Made of high-density polyethylene resin.
  2. UV stabilized & BPA Free.
  3. Standard Size – 250 Gallons ( 30” diameter & 89” tall )
  4. A Float Valve is installed in each tank to stop the flow of water when the  tank is full.
  5. Other tank sizes & dimensions available upon request, or if conditions require it.

System Space Requirements:

  • Single Tank System – 31” x 31” floor space, plus 24” x 24” wall space for the control box.
  • Two Tank System – 62” x 31” floor space, plus 24” x 24” wall space for the control box.
  • Three Tank System – 93” x 31” floor space, plus 24” x 24’ wall space for the control box.

Power Outlet – required to power pump and trickle charger in system.

  • Standard 15 amp outlet
  • Ideally located within 12” of top or bottom of the control box.
  • If an outlet is not available nearby, a sturdy extension cord may be used
